Groupset
Rear Derailleur
SRAM X01 Eagle / 12 Speed
Crank
SRAM X1 1000 / 165mm / 34T
Shifters
SRAM NX Eagle Single Click
Cassette
SRAM XG1275 / 10-52 T
Chain
SRAM NX Eagle
Chain Guide
SCOTT Custom
Brakes
Shimano XT / BR-M8120 4 Piston
Type: Hydraulic Disc
Wheels
Rims
Syncros MD30 / 32H / 30mm / Pin Joint; Tubeless ready
Spokes
Stainless Black
Front Hub
Formula CL-811 / 15x110mm
Rear Hub
Formula ECT-1481 / Boost 148x12mm
Tires
Front: Maxxis Assegai 29×2.6″; 120TPI Foldable Bead; EXO+ / TR Tubeless ready; 3C Maxx Terra, Rear: Maxxis Dissector 29×2.6″; 120TPI Foldable Bead; EXO+ / TR Tubeless ready; 3C Maxx Terra
Disc Rotors
Front: RT-MT800 CL 203mm / Rear: RT-EM800 CL 203mm
Electric Components
Motor
Bosch Performance CX; EU: 25kmh / INT: 20mph
Battery
PowerTube 625Wh
Display
Bosch Purion
Charger
4A Charger
Accessories
Lights
Bosch Light Cable pre-installed F&R
Frame
Alloy Frame / Virtual 4 link kinematic VLK; 27.5″ and 29″ compatible / geo adj. / Boost 148x12mm; 180mm travel / Bosch Gen4 / Integr. removable Battery; Tapered Headtube E2, Central Kickstand Mount
BB Standard: Bosch, Press Fit
Fork
FOX 38 Performance Elite / Air / eMTB+; FIT Grip 2 / LSC-HSC / LSR-HSR / 15x110mm QR axle; tapered steerer / Reb. Adj. / 180mm travel; FOX fork fender
Travel: 180mm
Spring Type: Air

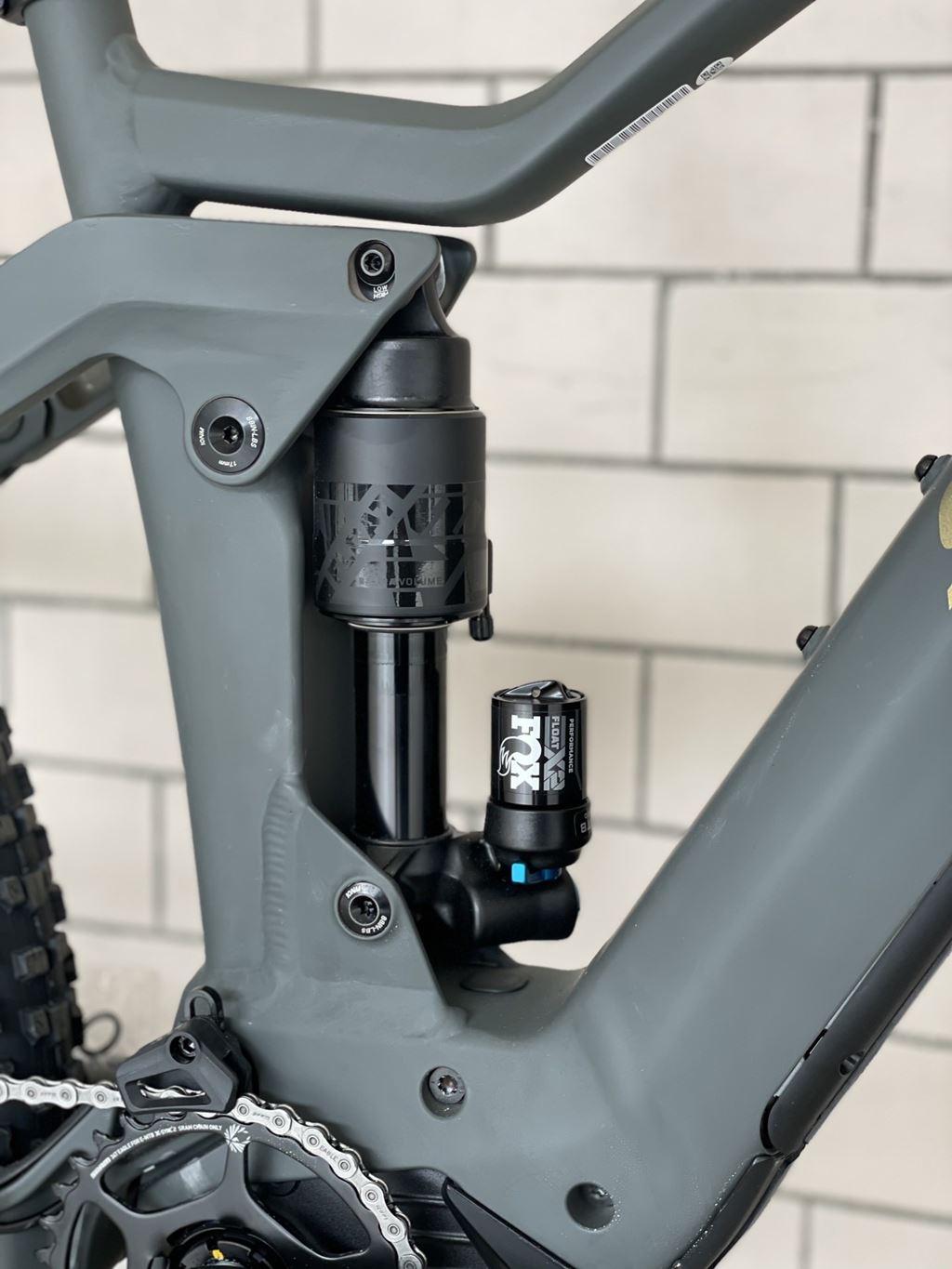

Shock
FOX Float X2 Performance / Air; LSC, LSR w/2-Pos. lever
Travel: 180mm
Bottom Bracket
Bosch, press-fit
Headset
Acros Blocklock / Tapered 1.5″-1 1/8″; OD 52/62mm / ID 44/56mm
Stem
Syncros XM1.5 / Alloy 6061; integrated Spacer & Top Cap / 31.8mm / 0° / 1 1/8″
Handlebar
Syncros Hixon 1.5 Rise / Alloy 2014D.B.; 20mm rise / 8° / 800mm; Syncros Pro lock-on grips
Saddle
Syncros Tofino 1.5 Regular; Titanium rails
Seatpost
FOX Transfer Dropper Post; 31.6mm / S size 125mm / M size 150mm / L&XL size 175mm
Type: Dropper
New
2022
Scott

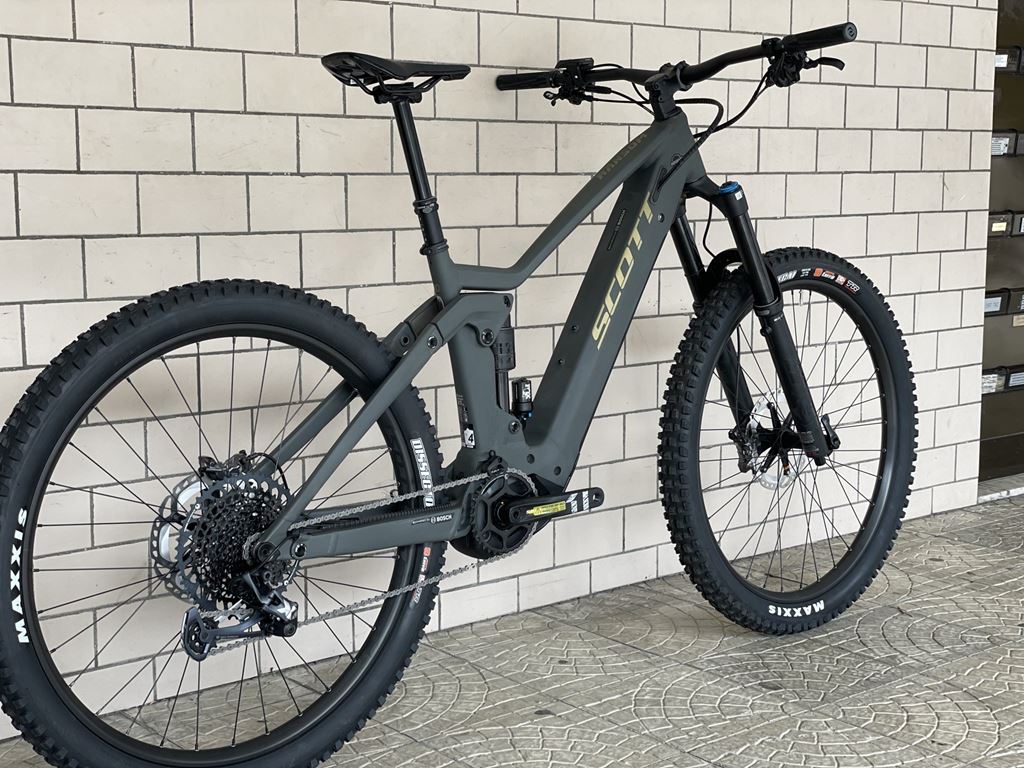

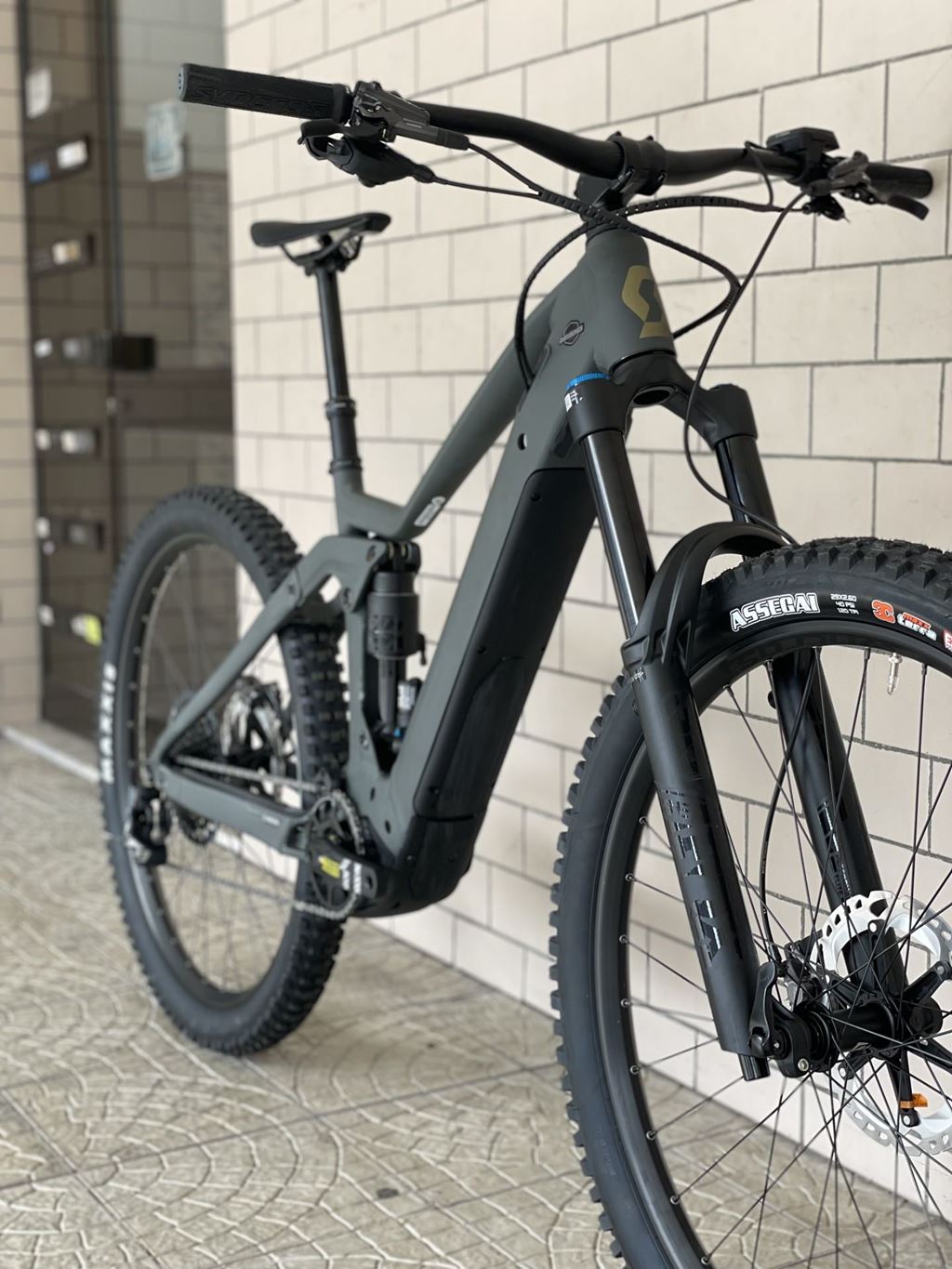

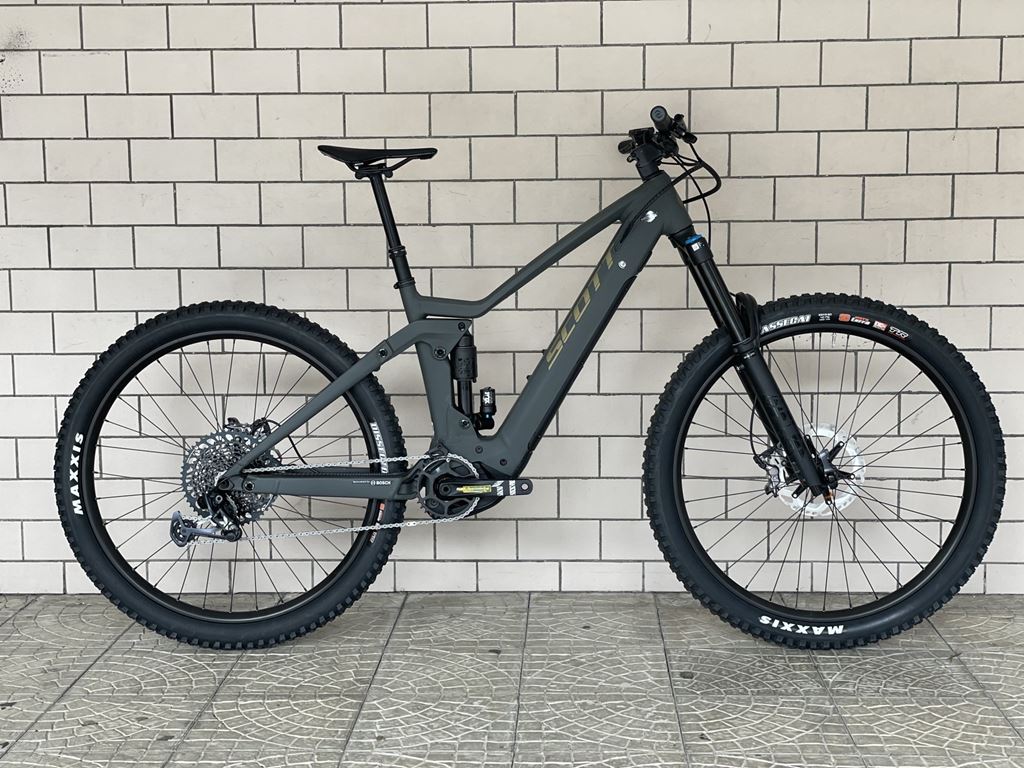

Ransome Eride 910
M
